Smartphone Uplink SPU700 7" Touchscreen Android/iPhone

  198.00 EUR
incl. 19% VAT, plus shipping

  • Touchscreen !
  • HDMI ! VGA ! Video !
  • Android / iPhone !
Support: Manuals & Apps | Installation Android [DE] | Installation Android [EN] | Installation iPhone [DE] | Installation iPhone [EN] | iPhone Gestures (Home-Button)

The new Smartphone-Uplink Display SPU700 is the ideal display and control tool for your smartphone. The large touchscreen allows you to operate your smartphone comfortably and reliably with your fingers. The brilliant HDMI display ensures maximum readability and sharpness.

Info Page

The Smartphone-Pplink technology enables full control over your Android (up to v4.2)/ iPhone(up to ios6) Smartphone (root or jailbreak required) which is connected by Bluetooth and HDMI or VGA. To operate the Home-/Back- and menu buttons a touch overlay is integrated in the supplied Android app. The home button on iPhone is emulated via gesture control.

Display size 7" digital
Aspect ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1440
Power input DC 12V
Power consumption max. 6W
Video system 1x Video inputs (PAL/NTSC)
1x VGA input
1x HDMI input (supports Audio)
Brightness 450 cd/m
Contrast 500:1
Operating Temperature -20 bis 60C
Dimensions Display Case : 182x123x30 mm
Touchscreen Bluetooth (Android / iPhone)
Rear side - HDMI-Input (A)
- Power Input
Features Full function OSD control (englisch)
Integrated Stereo-speakers
VESA-75 compatible

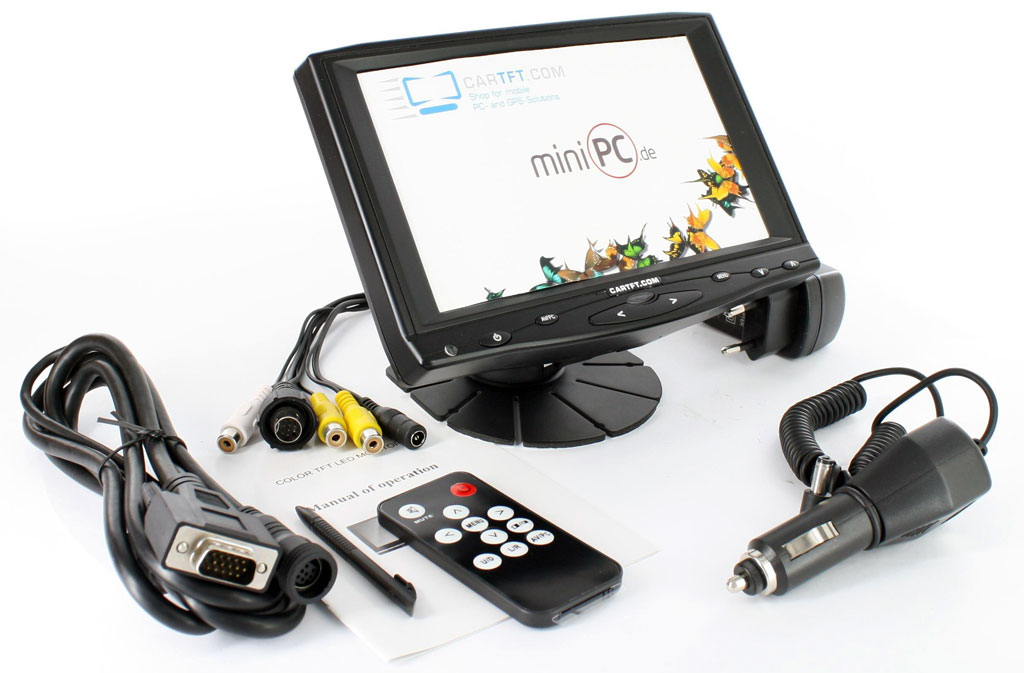

Scope of supply - Smartphone Uplink SPU700 7" VGA/HDMI Bluetooth Touchscreen TFT
- Infrared remote control
- Dash mounting adapter
- VGA / Video / Audio / Strom connector cable
- AC/DC home power adapter (110/230V)
- Cigarette lighter power adapter
- Touchscreen pencil
