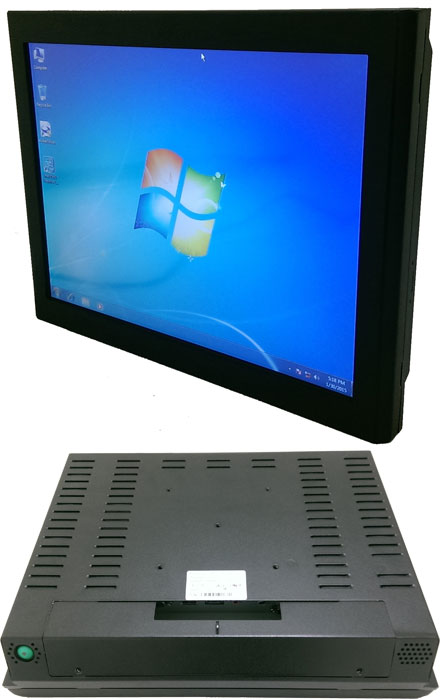

Mitac D150-BR 15" Panel PC (1024x768, Touchscreen, PD11BI Thin-ITX BayTrail, IP64 Front, Fanless)

PRODUCT IS CURRENTLY NOT AVAILABLE !

1024x768 Touchscreen !
Fanless ! IP64 Front !
Intel BayTrail CPU !
2x LAN, 4x COM !

D150 is a 15 inch all-in-one computing system with Intel Bay Trail processor in fanless system design. With single touch functionality and protected by IP64 front sealed chassis, all of these are aiming to provide the most stable and reliable quality for wide application and different environmental conditions.
Perfect for Smart Home, Retail POS Terminal, Self service Terminal, Hospitality Terminal, Digital Signage Player, Clinical Monitor, Transportation Display, Automation Controller, Embedded Device Dashboard or Production Line Controller.

9999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

RAM :

SSD (2.5"):

OS:

Build/Install:

Item	Spec
LCD Display	Size/Resolution	15" TFT LCD, 1024 x 768, 4:3
	Luminance	250 cd/m2
	Viewing Angle	70° (L/R), 65° (U/L)
Touch Screen	Type	5 wires resistive touch, Flat Glass
Processor System	Form Factor	Thin Mini-iTX, 170 x 170mm
	CPU	Intel Bay Trail-D J1900 Quad Core
	Memory	2 x DDR3L-1333 SO-DIMM, up to 8GB
	Storage	1 x 2.5" drive bay
	Expansion	x 1 PCI Express x 1 slot x 1 PCI Express Full-/Half-Mini Card slot x 1 PCI Express Half-Mini Card slot
	I/O	2 x RJ-45; 2 x USB 3.0, 2 x USB2.0, 1x Line-Out, 1x Mic-In,1x Line-in1x VGA-out, 1x DVI-out, 4x RS-232,1 x Parallel port
Power	Input	12V DC-in connectivity
	Power consumption	84W adaptor
	Power On	AT (on when power is ready)
Mechanical	Size (W x D x H)	280 mm x 355 mm x 55.1 mm
	Weight	~5 kg
	Protection	IP64 Compliant in front
	Fixture	VESA 75x75/100x100mm, panel Mount
Environmental	Operating Temp	-20 ~ 50°C
	Operating Humidity	10% ~ 90% (relative, non-condensing)
	Certification	CE/FCC Class A

Data sheet	Download (PDF)
Data sheet	Print view
Mitac Catalogue	Download (PDF)
Mitac Edge AI Guide	Download (PDF)
Specifications	Download (PDF)
Pictures	Download
