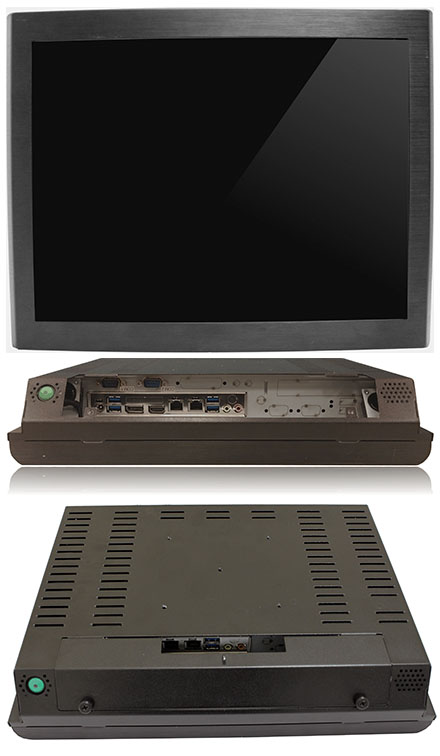

Mitac D150-12SI-Q170-RT [Intel LGA1151 Socket] 15" Panel PC (1024x768, IP65 Front)

1024x768 Touchscreen !
IP65 Front !
Intel KabyLake !
2x LAN, 2x COM !

D150-S is a 15 inch all in one panel pc system with Intel 7th & 6th Core-i based platform for rich performance. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Industrial-grade 15" TFT LCD with 50,000 hrs backlight lifetime
Reliable 5 wire resistive touch control
Front panel IP65-rated

918.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)

RAM :

LCD

Display Type

15" TFT-LCD

Max. Resolution

1024 x 768

Max. Colors

16M (8 bit/color)

Luminance

350 cd/m2

Viewing Angle

160°(H), 145°( V)

LED Backlight lifetime (Hours)

50,000

TOUCH SCREEN

Type

resistive

Touch Screen

singel point

SYSTEM

Processor

7 / 6th Gen Intel® Kaby Lake / Skylake LGA1151 Socket Processor, TDP Max. 35W

Chipset

Intel® Q170 (Support RAID 0 / 1 / 5 / 10)

System Memory

DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)

Ethernet

Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN

I/O Port

2 x RS232
2 x RJ45
1 x DisplayPort 1.2 /
1 x DC Jack /
4 x USB 3.0 /
1 x HDMI 1.4 /
1 x Line-out /
1 x Mic-in

Watchdog Timer

1~255 steps by software program

Storage Disk Drive

SATA 2.5” HDD/SSD bay x 1

Expansion Slot

Mini PCIe Half size (PCIe / USB) / Mini PCIe Full size (PCIe / USB / SATA)

Stereo Speaker

2 x 2W

OS Support

7th Gen Kaby Lake: Windows 10 64bit, Linux (support by request) / 6th Gen Skylake: Windows 7 32 / 64bit

POWER REQUIREMENT

Power Input

12V DC

Power Adapter

84W adapter / DC12V / 7A / AC / DC

MECHANICAL

Mounting

VESA 100 / Stand

Dimension

280 x 355 x 55 mm

Weight

4.3kg

ENVIRONMENTAL

Operating Temperature

-20°C ~ 50°C (-4 ~ 122°F)

Storage Temperature

-20 ~ 70°C (-4 ~158°F)

Storage Humidity

10% ~ 90% @40°C non-condensing

Vibration Resistance

Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD

Shock Resistance

Operating 50 G peak (3 ms duration)

EMC

CE / FCC Class B

Front Panel Protection

IP65 Compliant
