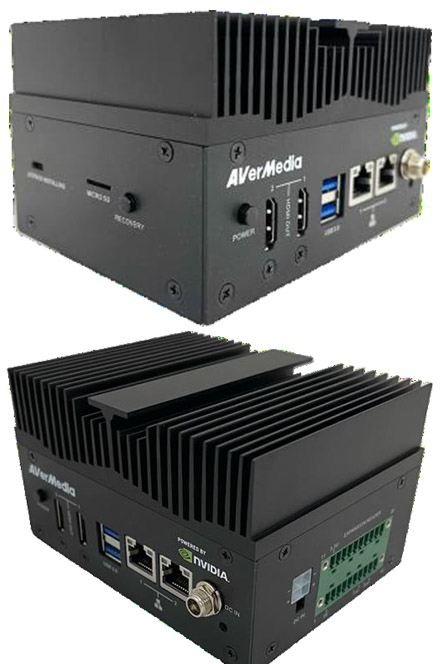

AVerMedia D115OXB-8G BoxPC (NVIDIA Jetson Orin NX 8GB, 256GB SSD)

AVerMedia D115OXB-8G BoxPC (NVIDIA Jetson Orin NX 8GB, 256GB SSD)
  • NVIDIA® Jetson Orin NX !
  • FANLESS !
  • 8GB !
  • 2x HDMI / 2x LAN !

  • Embedded NVIDIA® Jetson Orin NX module
  • 2 x 2 Lane MIPI CSI-2 MIPI Camera input (internal)
  • 2 x M.2. for WIFI and SSD
  • 2 x GbE RJ-45
  • 3 x USB 3.0 (1x internal)
  • 1 x 8Kp30 HDMI output
  • 20-pins expansion header
  • Dimension: W: 126mm x L: 96mm x H: 74mm
[more]
Share

1098.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart

  • Embedded NVIDIA® Jetson Orin NX module
  • 2 x 2 Lane MIPI CSI-2 MIPI Camera input (internal)
  • 2 x M.2. for WIFI and SSD
  • 2 x GbE RJ-45
  • 3 x USB 3.0 (1x internal)
  • 1 x 8Kp30 HDMI output
  • 20-pins expansion header
  • Dimension: W: 126mm x L: 96mm x H: 74mm

AVerMedia’s AI Box PC D115OXB equips powerful NVIDIA® Jetson Orin NX module. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D115OXB is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Type / Model Box PC / D115OXB-8G
NVIDIA GPU SoC Module CompatibilityNVIDIA® Jetson Orin NX module
Networking2x GbE RJ-45
1xM.2. key E 2230 for wifi
Display Output1x HDMI 2.1 (7680 x 4320 at 30Hz) (TBD)
TemperatureOperating temperature 0°C~55°C (TBD)
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector
USB1x USB 2.0 Micro-B for recovery
3x USB 3.0 Type-A (2 x in the Front side; 1 x inside the Box PC)
Storage1x M.2. key M 2280 for NVMe (256G SSD installed in box PC)
Expansion Header (Internal)20 pins: 2x I2C, 1x UART, 4x GPIOs, 1xCAN (EU terminal block)
Power requirementDC in JACK on board & ATX 4pin
12V/5A, 12V~24V is recommended..
Power CordUS/JP/EU/UK/TW/AU/CN
Fan ModuleFanless Solution
ButtonsPower and Recovery
RTC BatterySupport RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical InfoW: 126mm (W) x 96mm (L) x 74mm (H)
Weight: 1kg
CertificationsCE, FCC, KC
Package 1x D115OXB (256G SSD installed)
1x Adapter and Power cable
Data sheet Download (PDF)
Data sheet Print view
Jetpack 6 Installation Download (PDF)
