| Main |
|
| Range of Product |

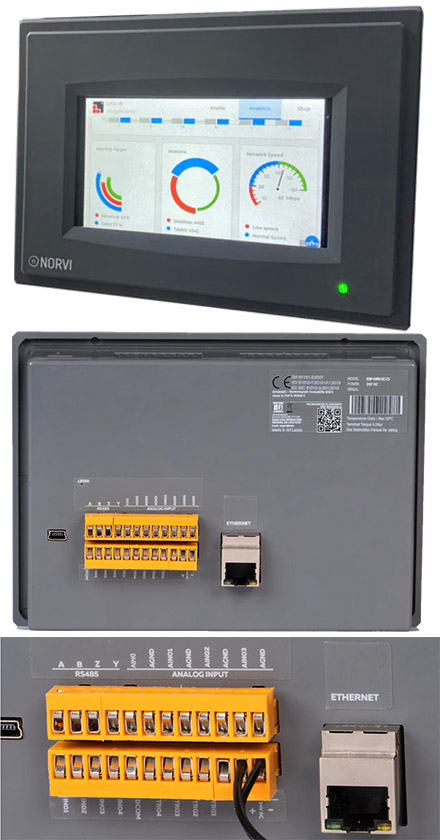

NORVI HMI Controller |
| Product Type |
Programmable HMI |
| Certifications |
EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C |
| Rated supply voltage |
12 - 24V DC |
| Communication |
RS-485 Ethernet |
| Inputs and Outputs |
4 x Digital Inputs
4 x Analog Inputs 4-20mA
4 x Transistor outputs |
| Displays and Visual Indicators |
LCD Display |
| |
|
| Complementary |
|
| Product Unified Code |
ESP-HMI-5C-VI |
| Product Part Numbers |
ESP-HMI-5C-VI |
| |
|
| Mechanical Properties |
|
| Enclosure |
OP-300-B |
| Mounting / Installation Method |
DIN Panel Mount / Cutout 116 x 163 mm |
| Terminal Type |
SCREW TERMINAL |
| Terminal Arrangement |
Top and Bottom |
| Length |
179.6 mm |
| Height |
129.6 mm |
| Width |
42.6 mm |
| |
|
| Environment |
|
| IP degree of protection |
IP20 |
| Operating altitude |
0 - 2000 meters |
| Operating Temperature |
-10 - +85C (185 °F) |
| Storage altitude |
0 - 3000 meters |
| Shock resistance |
15 gn for 11ms |
| Resistance to electrostatic discharge |
4kV on contact 8kV on air |
| Resistance to electromagnetic fields |
10 V/m (80 MHz - 1GHz)
3 V/m (1.4 MHz - 2 GHz)
1 V/m (2 MHz - 3 GHz) |
| |
|
| Electrical Characteristics |
|
| Rated Supply Voltage (V) |
24V DC |
| Current Consumption (mA) |
100mA |
| Recommended Power Source |
2W |
| |
|
| Processing |
|
| SOC / MCU |
ESP32-S3-WROOM32-1-N16R8 |
| Flash Memory |
16MB |
| ROM |
384 KB |
| SRAM |
512 KB |
| PSRAM |
8 MB (Octal SPI) |
| |
|
| Peripherals |
|
| microSD Card support |
|
| Card Type |
microSD |
| Interface |
SPI |
| SD CARD CS |
GPIO37 |
| MISO |
GPIO19 |
| MOSI |
GPIO12 |
| SCLK |
GPIO13 |
| SD Detect |
NOT CONNECTED |
| |
|
| Internal RTC |
|
| RTC Chip |
DS3231 |
| Backup Battery Type |
CR2032 |
| Interface |
I2C |
| I2C Address |
0x68 |
| SCL Pin |
GPIO19 |
| SDA Pin |
GPIO20 |
| |
|
| TFT LED Display |
|
| Display Driver |
ER-TFT050-3 |
| Display Size |
5 inch |
| HSYNC |
GPIO6 |
| VSYNC |
GPIO5 |
| DEN |
GPIO4 |
| DCLK |
GPIO7 |
| DISP CS |
GPIO39 |
| R0 |
Connected to GND |
| R1 |
Connected to GND |
| R2 |
Connected to GND |
| R3 |
GPIO1 |
| R4 |
GPIO41 |
| R5 |
GPIO40 |
| R6 |
GPIO38 |
| R7 |
GPIO45 |
| G0 |
Connected to GND |
| G1 |
Connected to GND |
| G2 |
GPIO48 |
| G3 |
GPIO47 |
| G4 |
GPIO21 |
| G5 |
GPIO14 |
| G6 |
GPIO9 |
| G7 |
GPIO3 |
| B0 |
Connected to GND |
| B1 |
Connected to GND |
| B2 |
Connected to GND |
| B3 |
GPIO8 |
| B4 |
GPIO18 |
| B5 |
GPIO17 |
| B6 |
GPIO16 |
| B7 |
GPIO15 |
| |
|
| INPUTS and OUTPUTS |
|
| Digital Inputs |
|
| Number of Digital Inputs |
4 |
| Digital Input Polarity |
Sink and Source |
| Digital Input Maximum Voltage |
32V DC |
| Digital Input Minimum Voltage |
18V DC |
| Maximum Switching Frequency |
1 kHZ |
| IO Connection |
Via PCA9535PW
SCL - Pin 14
SDA - Pin 15
I2C Address - 0x73 |
| Terminal Arrangement |
Digital Input 0 - IO0
Digital Input 1 - IO1
Digital Input 2 - IO2
Digital Input 3 - IO3 |
| |
|
| Analog Inputs |
|
| Number of Analog Inputs |
4 |
| Analog Input Measurement Range |
0-10V |
| Analog Input Maximum Voltage |
38V DC |
| Analog to Digital Converter (ADC) |
ADS1115 |
| Analog to Digital Converter (ADC) Communication |
I2C |
| Analog to Digital Converter (ADC) Address |
0x48 |
| Terminal Arrangement |
A0 : Analog Input 0 - ADS1115 - 0x48 - AIN0
A1 : Analog Input 1 - ADS1115 - 0x48 - AIN1
A2 : Analog Input 2 - ADS1115 - 0x48 - AIN2
A3 : Analog Input 3 - ADS1115 - 0x48 - AIN3 |
| |
|
| Transistor Outputs |
|
| Number of Transistor Outputs |
4 |
| Transistor Output Type |
OPEN COLLECTOR |
| Maximum Sink/Source Current (mA) |
100mA |
| Maximum Applicable Voltage |
40V DC |
| Maximum Switching Frequency |
1 kHz |
| IO Connection |
Via PCA9535PW
SCL - Pin 14
SDA - Pin 15
I2C Address - 0x73 |
| Terminal Arrangement |
TR01 - IO4
TR02 - IO5
TR03 - IO6
TR04 - IO7 |
| |
|
| RS-485 Communication |
|
| Communication Mode |
FULL-DUPLEX |
| Transceiver |
SP490CN-L |
| Unit Load |
1 |
| TX Pin |
GPIO3 |
| RX Pin |
GPIO35 |
| |
|
| Ethernet SPI - W5500 |
|
| Transceiver |
W5500 |
| Speed |
10BaseT/100BaseTX |
| Supports Auto Negotiation |
Yes |
| TX/RX Buffer Size |
Internal 32 Kbytes Memory |
| Supported Hardwired TCP/IP Protocols |
TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Number of Simultaneous independent sockets |
8 |
| SCSn |
GPIO10 |
| MISO |
GPIO11 |
| MOSI |
GPIO13 |
| SCLK |
GPIO12 |
| |
|
| IO Expander |
|
| PCA9535PW PIN |
Connection |
| 1 - A0 |
Pulled up to 3.3V |
| 2 - A1 |
Pulled up to 3.3V |
| 3 - RESET |
Pulled up to 3.3V |
| 4 - IO0 |
Digital Input 1 |
| 5 - IO1 |
Digital Input 2 |
| 6 - IO2 |
Digital Input 3 |
| 7 - IO3 |
Digital Input 4 |
| 8 - VSS |
GND |
| 9 - IO4 |
Transistor Output 1 |
| 10 - IO5 |
Transistor Output 2 |
| 11 - IO6 |
Transistor Output 3 |
| 12 - IO7 |
Transistor Output 4 |
| 13 - INT |
Pulled up to 3.3V |
| 14 - SCL |
SCL |
| 15 - SDA |
SDA |
| 16 - VDD |
3.3V |
