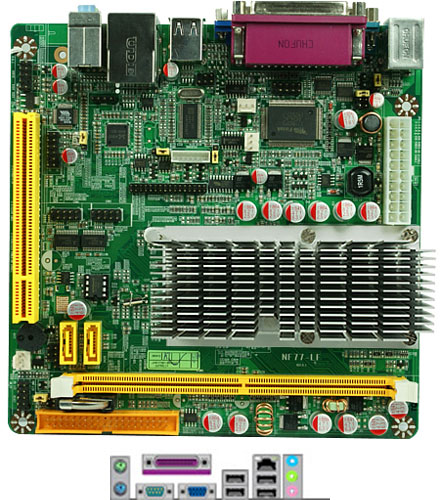

Jetway JNF77-1G6E-LF (1.6Ghz, FANLESS)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Jetway JNF77-1G6E-LF (1.6Ghz, FANLESS)


Fanless ! 1.6Ghz ! FSB800 !	Share

1-3 days 999.00 EUR
incl. 19% VAT, plus shipping .

Product:

Data sheet | Print view | Add to cart | Compare

Specifications

CPU	VIA Eden 1.6GHz	RAM	1x DDR-II 533/667
Graphic	VIA Chrome9 HC3 IGP	Audio	VIA VT1708B HD Audio Codec
Formfactor	ITX (17x17cm)	Base	VIA ITX

Interface

USB	4x USB 2.0	LAN	1x 10/100/1000 Mbit
Firewire	--	Parallel	1x
IDE/SATA	1x IDE, 2x SATA	Serial	2x

Features

TV-Out		Passive cooling
PCI		PCI-Express
Mini-PCI		PCMCIA
IDE		SATA
DVI		CPU changeable
800x480 Resolution		Compact Flash

Compatible enclosures

	Casetronic Travla C137		Casetronic Travla C138 (not in stock until 15.02.2012)
	M200 Enclosure		M200-LCD Enclosure
	M300 Enclosure (1x PCI)		M300-LCD Enclosure (1x PCI) [Delivery time on request]
	M350 Mini-ITX enclosure		Morex Case 3300
	Morex Case 3310		Morex Case 3777 black
	Morex Case Cubid CB2699 beige		Morex Case Cubid CB2699 black
	Morex Case Cubid CB3677 black		Morex Case Cubid CB3688 black
	VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition]		VoomPC (perfect for M1-ATX/M2-ATX) [Black Edition] (with TFT power connector)
	VoomPC-2 (perfect for M1-/M2-ATX) [Black Edition]		VoomPC-2 (perfect for M1-/M2-ATX) [Black Edition] (with TFT power connector)

PRODUCT IS CURRENTLY NOT AVAILABLE !

- VIA VX800 Chipset
- VIA Eden 1.6GHz(90nm,FSB 800MHz,1.6GHz) processor
- Integrated Chrome9 HC3 DX9 IGP
- Integrated LVDS support 24-bit TFT LCD
- Support 1 x 32-bit PCI slot
- Support 2 x Serial ATA 2 Devices
- Windows Vista Ready
- Onboard Gigabit LAN
- Support DC Fan
- VIA VT1708B HD Audio Codec with 6-Channel
- 170 x 170mm Mini-ITX Form Factor
- Support Watch dog Technology

CPU	Support VIA Eden 1.6GHz(90nm,FSB 800MHz, 1.6GHz) processor Front Side Bus 800MHz
Chipset	VIA VX800 Chipsets VIA Chrome9 HC3 IGP, 128Bit 3D engines( Share System Memory:64/128/256MB)
Memory	1 * 240-pin DIMM Sockets for un-buffered DDR2 667MHz SDRAM up to 2GB
Expansion Slots	1 * 32-bit PCI slots
Power Management	ACPI S3/S4 Compliant ,supports VIA PowerSaver™ feature
Storage	2 * Serial ATA2 3Gb/s connectors with RAID 0,1 functions 1 * 40-PIN Ultra DMA 133/100/66 IDE connector
Audio	VIA VT1708B HD Audio Codec with 6-Channel
Ethernet LAN	1 * RTL8111C 10 / 100 / 1000 PCI LAN
USB	Embedded 4 * USB 2.0/1.1
LVDS	Onboard 24-bit dual channel LVDS connector
Rear Panel I / O	4 * USB 2.0/1.1 ports 1 * PS/2 connector for Keyboard and Mouse 1 * RJ-45 ports 3 * Audio I/O ports ( Line-in, mic and line-out ) 1 * VGA port 1 * DB-9 RS232 COM port 1 * DB-25 Connector for Printer Port
Internal I / O	1 * CPU Smart Fan Connector, 2 * Sys/Chassis Fan Connectors 3 * 9-Pin COM Port headers 1 * WI-FI header 1 * LVDS header 1 * IR header
BIOS	Award 4MB DIP-SPI Flash ROM
Form Factor	Mini-ITX (170mmx170mm)
Temperature	Operating within 0~60 centigrade Storage within -20-85 centigrade

Scope of supply:
- Jetway JNF77-1G6E-LF with 1.6Ghz CPU
- DriverCD
- Manual
- ATX shield
- IDE-cable
- SATA-cable

Customer ratings:

vitalibraun |

| 16.04.2010 | See all my comments
Sehr gutes Motherboard, sehr sparsam und doch schnell, empfehlenswert

xp8it |

| 23.04.2009 |

Feine Sache, Ubuntu 8.10 Server + Asterisk laufen problemlos.
Der CPU-Kühler ist kaum über 40°C.

Positiv zu erwähnen ist natürlich die schnelle Lieferung!
