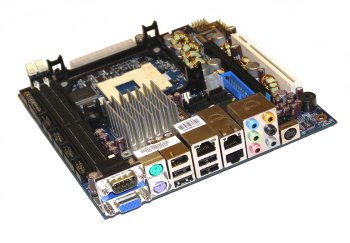

KONTRON 986LCD-M/mITX (for Core Duo/Core Single)

BACK : Intel ITX Mainboards

CPU	Intel Core Duo @ 533/667 FSB	RAM	2x DDR-II 533/667
Graphic	Intel GMA 950	Audio	AC97 Codec
Formfactor	ITX (17x17cm)	Base	Intel ITX

USB	8x USB 2.0	LAN	3x 10/100/1000 Mbit
Firewire	2x	Parallel	--
IDE/SATA	1x IDE, 4x SATA	Serial	2x

TV-Out		Passive cooling
PCI		PCI-Express
Mini-PCI		PCMCIA
IDE		SATA
DVI		CPU changeable
800x480 Resolution		Compact_Flash

- Intel® Core™ Duo and Core™ Solo Processors (mPGA478 socket, mBGA479 prepared)
- Support Yonah and Merom CPU core
- Front Side Bus 533/667 MHz
- Intel® 945GM + Intel® ICH7R Chipset
- Intel® GMA950 graphic controller on board
- Flat Panel Display Support
- TV-Out
- Dual independent Display Support (incl. 2x LCD)
- 1x 16x PCI-Express /SDVO external graphic card socket
- 2GB DDR2 memory support
- 3x 10/100/1000 Mbps Ethernet
- 8x USB 2.0, 4x RS232C, 2x IEEE1394
- 1x ATA100 and 4x SATA150/300 IDE Controller
- 1x mini PCI-Express socket for easy expansion of i.e. wireless LAN
- On board RAID 0/1/5/10 support with SATA harddisk
7.1ch HDA / AC-97compliant audio output
- Size: 170 x 170 mm (6.7" x 6.7")

Installation in Voom-2 enclosure not possible.

Scope of supply :
- Kontron 986LCD-M/mITX Mainboard
- Kontron CPU-heatsink/fan
- SATA-Cable



Graphics driver for 800x480 resolution : Here
