- 54Mbit W-LAN
- FANLESS carpc system
- 12VDC based !
- Dualchannel VGA

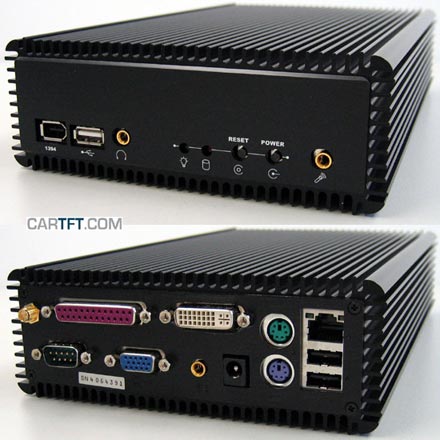

Fanless CarPC-barebone for use with Intel P4/Celeron M CPU.
Celeron-M 1.7Ghz is recommeded for fanless operation.
Has integrated WLAN. Antenna connector (SMA) on rear side. Aerial is included with shipment !
Graphics driver for 800x480 resolution : Here
|CPU||Intel Pentium-M/Celeron-M @ 400 FSB|
|Graphics||Intel Extreme Graphics|
|RAM||2x DDR 266/333/400 low-profile|
|USB||3x USB 2.0|
|Processor (supported)||Intel Pentium M processor or Celeron M processor (Dothan or Banias) 1.3GHz or higher|
Supports DDR 333/266 DIMM RAM|
0.8" low profile
2x memory slots !
Maximum : 2 GB
Intel Extreme Graphics 2|
Supports up to 64MB DVMT video memory
|Audio||Software AC '97 Audio CODEC|
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 Port
1 x MIC Port
1 x Ear Phone output Jack
Power-on and HDD LED
1 x RS232 COM port
1 x RJ45 10/100Mb Fast Ethernet
1 x Line-Out output Jack
2 x USB 2.0 / 1.1 Ports
1 x 15 pin VGA
1 x DVI
1 x WLAN Antenna (SMA)
1 x 12v DC Power Jack input
One 2.5 inch Hard Disk and 9.5mm high. |
(Support Ultra DMA 33/66/100).
|Weight & Size||System approximately 3kg (fully
System Dimension: 155 x 255 x 55 mm
|Power req.||12V, 5A|
all Standard Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo|
Supports all 2.5" standard IDE hard drive, ATA-100/66/33.
|Scope of supply||
EU power supply|
