CTF1210 - VGA 12.1" TFT - Touchscreen USB - Video

CTF1210 - VGA 12.1" TFT - Touchscreen USB - Video

New from September 2011:
- New panel type (Higher contrast)
- Metal- instead of plastic-enclosure


The CTF-1210 TFT-Display is equipped with a 12.1" TFT panel and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. Because of the 4:3 aspect ratio and the size of 12.1", the display is perfectly suitable for beeing used in POS-section or on boats. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The CTF-1210 can be used with any PC/MAC with VGA- and USB port.

Driver-CD include
[more]

Share

569.00 EUR
incl. 16% VAT, plus shipping
In Stock (3 pcs)

Add to cart
Compare

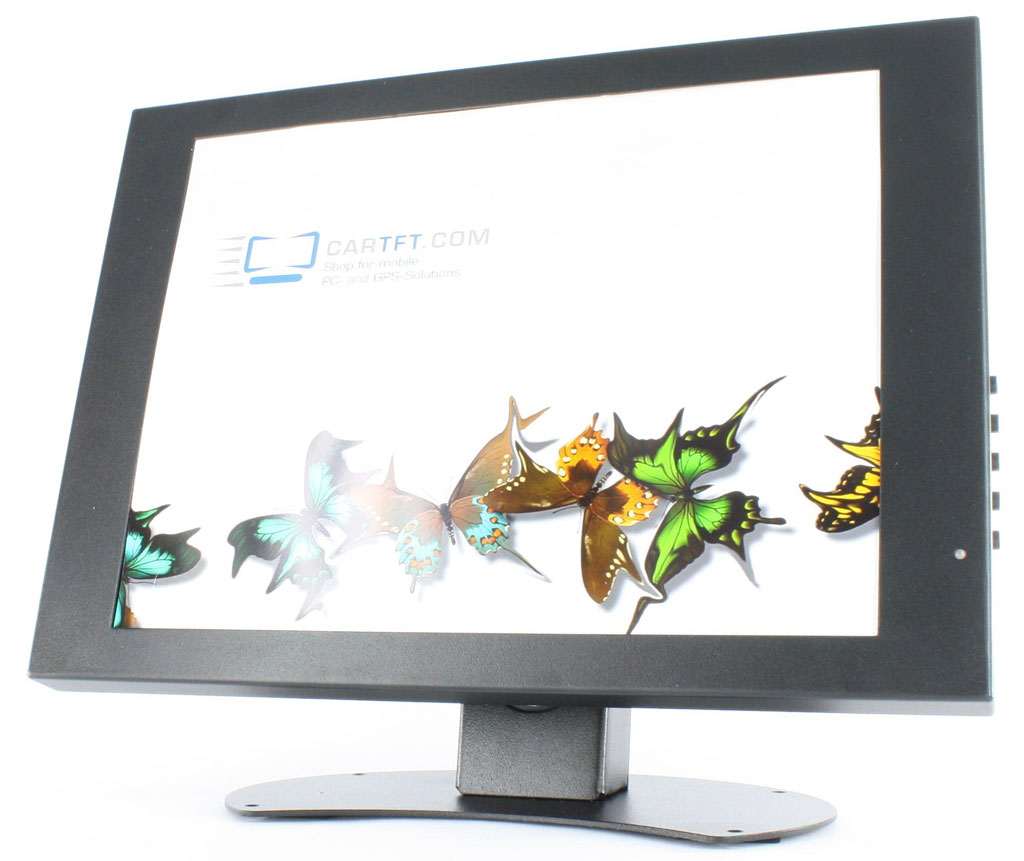

Front

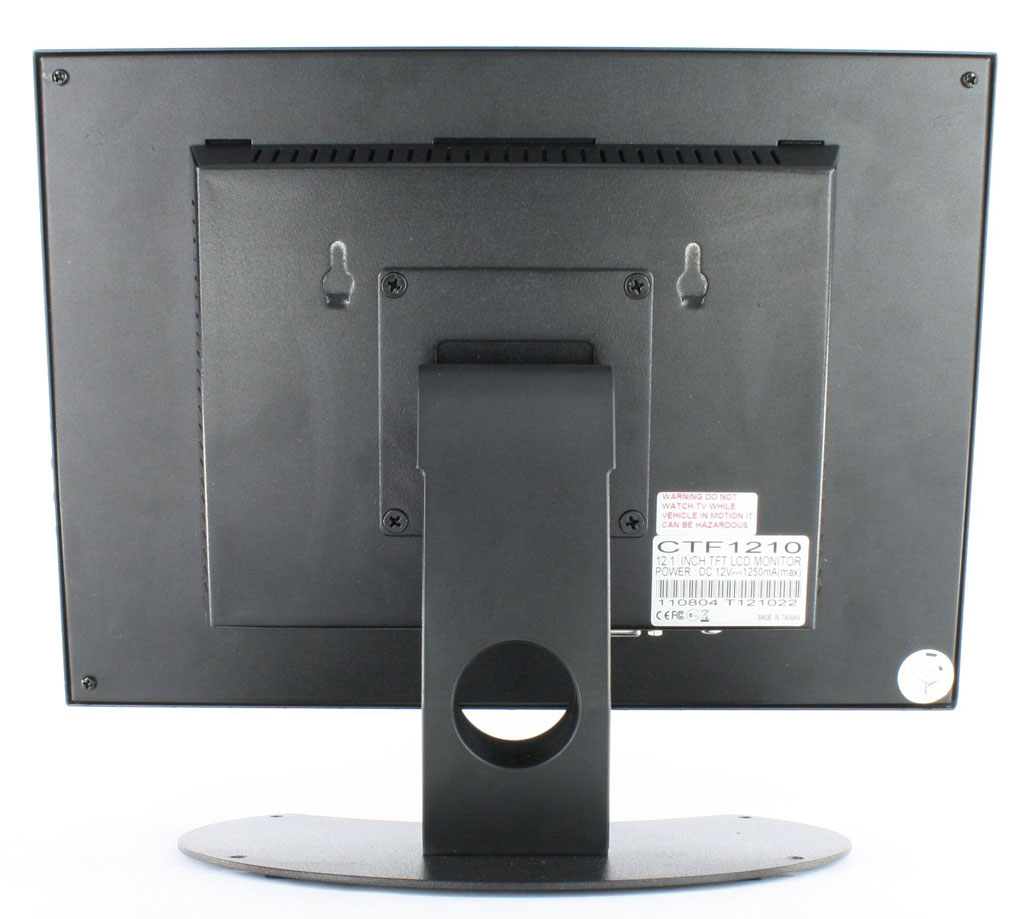

Rear

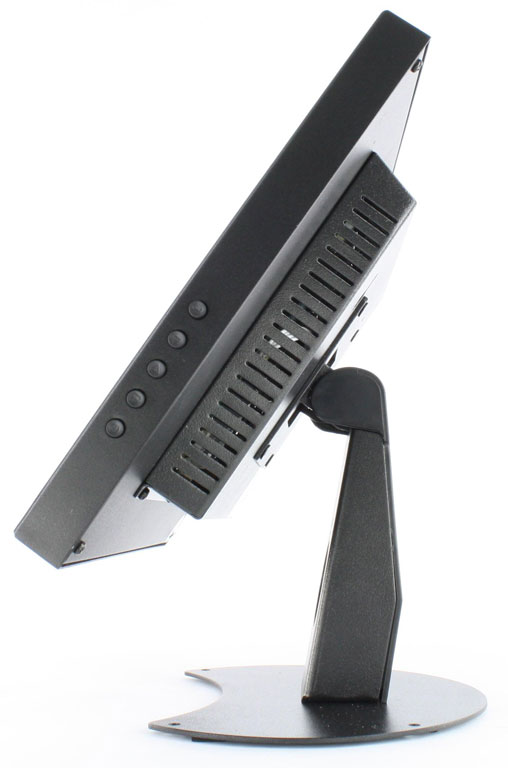

Side
LCD Size 12.1"
Aspect Ratio 4:3
VGA resolutions 640x480-1900x1200
Native resolution 800x600
Dot resolution 2400x600
Brightness 400
VGA Input D-SUB 15
Video Input 2x PAL/NTSC (RCA/S-Video)
Audio Input --
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 20W
Case size 310 x 220 x 20mm
Visible area 246 x 184.5 mm
Certificates CE
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
no IR Remote
no Headrest mount
no TS pencil
no Earphone
no Adjustable video aspect
no Mirrorable video
no Reverse camera input

New from September 2011:
- New panel type (Higher contrast)
- Metal- instead of plastic-enclosure


The CTF-1210 TFT-Display is equipped with a 12.1" TFT panel and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. Because of the 4:3 aspect ratio and the size of 12.1", the display is perfectly suitable for beeing used in POS-section or on boats. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The CTF-1210 can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..




Specifications
Display size 12.1" digital
Aspect ratio 4:3 wide TFT screen
Dot Resolution 2400x600= 1,440,000 dots
Physical Resolution 800x600
Supported Resolutions 640x480-1900x1200
Color configuration RGB stripe
Power input DC 12VDC
Power consumption max. 45W
Video system 1x Video input RCA (PAL/NTSC)
1x Video input S-Video
1x VGA input
Dimensions Display Case : 310mm x 220mm x 20mm
Display : 246mm x 184.5mm
Video input signal 1.0Vp-p, composite video
Brightness 400 cd/m²
Contrast 600:1
Vibration IEC68-2-6
Operating Temperature -30° bis 85°C
Features Full function OSD control (englisch)
VESA-mounting holes (75mm)
Scope of supply - 12.1" VGA Touchscreen TFT with Video-support
- Mounting unit
- VGA-connector cable
- Power supply f. 110/230V Steckdose
- Cigarette Lighter Adapter
- USB-connector cable
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet Print view
