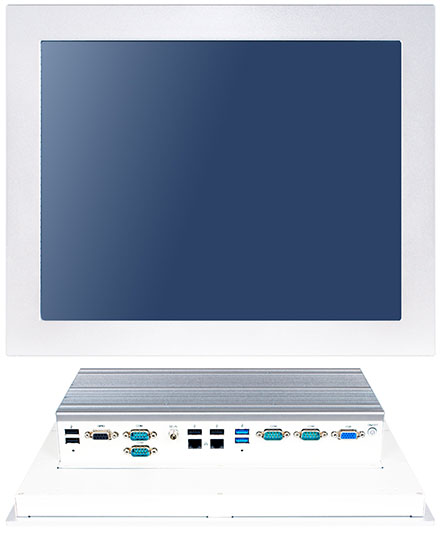

Jetway HPC150GR-HD1900B Panel-PC (15" 1024x768 5W Touchscreen, Intel Celeron J1900, 4GB RAM) [IP65/NEMA4 Front]

Jetway HPC150GR-HD1900B Panel-PC (15" 1024x768 5W Touchscreen, Intel Celeron J1900, 4GB RAM) [IP65/NEMA4 Front]

  • 15.0” 350 nits high brightness TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casing
  • Strong solid aluminum frame design and Fanless cooling system
  • Support Open frameless design
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Lockable USB device bracket supported
  • Front bezel meets IP65-rated protection
  • 9-28V DC-input Support, with EOS, OVP design
Jetway HPC150GR-HD1900B h [more]

Share

849.00 EUR
incl. 19% VAT, plus shipping
Availability on request

To cart

  • 15.0” 350 nits high brightness TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casing
  • Strong solid aluminum frame design and Fanless cooling system
  • Support Open frameless design
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Lockable USB device bracket supported
  • Front bezel meets IP65-rated protection
  • 9-28V DC-input Support, with EOS, OVP design
Jetway HPC150GR-HD1900B heavy-duty Fanless Panel PC offers complete robust solution for harsh industrial environments, such as cloud computing, IoT solution, transportation, heavy-vehicles, intelligent building, oil pipe monitoring systems, environmental monitoring, steel refineries, machine control and factory automation.

Jetway HPC150GR-HD1900B heavy-duty Fanless Panel PC is designed with 5-wires resistive touch screen for 4:3 size panel. High brightness TFT LCD panel with LED backlight are equipped with all models. Cable-free design is easy for the HDD and memory installation. Streamlined enclosure with strong solid aluminum frame design, it provides good heat dissipation and achieve fanless cooling system.

Jetway HPC150GR-HD1900B heavy-duty Panel PC is also designed for open frame application. Heavy-duty Panel PC is designed mounting clips for easy Wall mount, Panel Mount, VESA Mount installation.

It is a true flat with easy clean design, front bezel meets IP65-rated & NEMA 4 protection. Welcome to use Jetway heavy-duty Panel PC.

 Display
Front Bezel – IP65, NEMA 4 rugged protection, metal front bezel
Display Type – 15.0″ With LED Backlight
Brightness (cd/m²) – 350 nits
Display Color – 262K
Resolution – 1024 x 768 @ 60Hz
Viewing Angle (H/V) – 170°/160°
Pixel Pitch – 0.297 x 0.297 mm
Aspect Ratio – 4:3
Contrast Ratio – 700:1
Response Time – 5.7 ms
 Touch Screen
Type – 5 wires analog resistive type
Active Range – 304.10 x 228.10mm ±0.2mm
Operating Force – ≦ 80g
Transparency – 80 ±3%
Surface Hardness – ≧3H (ASTM D3363, pressure 750g/45°)
Knock test – 10,000,000 times keystrokes
 CASE
Panel Material – Aluminum
Case Material – Iron
Color – Silver + white
Coating Requirement – Spray Paint
 Main System
CPU – Intel® Bay Trail-D J1900 2.0GHz/QC
RAM – 4G 1333MHz DDR3L SAMSUNG DRAM
BIOS – 64MB SPI Flash ROM
Storage – 1* 2.5” SATA bay
– 1* M.2 connector (2242/2260/2280)
Watchdog Timer – 256 levels, 0~255 sec.
OS Support – Windows 7 / 8.1 / 10 / Linux (Option)
 I/O Connector
I/O Ports and Switches – 2* USB3.0
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* CRT
– 1* 8bit GPIO
– 2* LAN (Intel® I211AT Gigabit LAN)
– 1* Locking Jack 9~28V DC input
– 1* Power button
 Expansion Interface
Expansion – 1 * PCI-E mini card for WIFI or 3G/4G
– 1 * SIM card holder for 3G/4G
 Power
Power Input – Supports 9-28V DC Power in with over current protection fuse – Provides 100~240V AC-DC 12V, 60W power adapter
Power Consumption – 35W
 Power
Case Dimensions – 366.0*290.0*74.0mm
 Certifications
Certifications – CE, FCC, IP65(Front)
 Environment
Temperature – Operating Temperature: 0 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: 0 ~ 60° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 85° C
Shock – Operating: 15G,11ms duration
Vibration – Operating: 5~500Hz/1 Grms
 Warranty
Warranty – 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
Data sheet Download (PDF)
