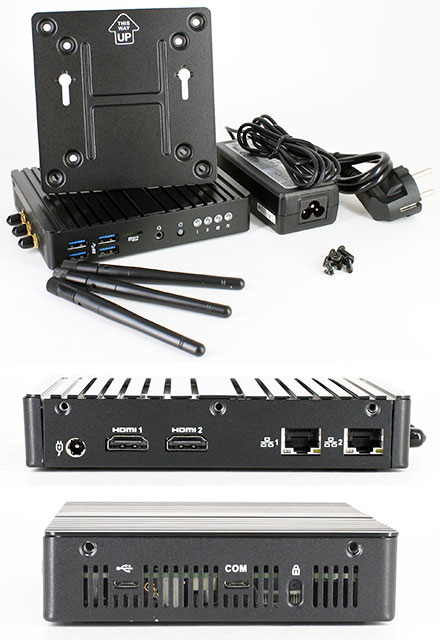

Gigabyte EL-20-3060-8GB (Intel Celeron N3060, 2GB RAM, 8GB eMMC, 2x LAN, WLAN/BT, VESA) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Gigabyte EL-20-3060-8GB (Intel Celeron N3060, 2GB RAM, 8GB eMMC, 2x LAN, WLAN/BT, VESA) [<b>FANLESS</b>]
3D 360° View
  • 2x Gigabit LAN !
  • Metal enclosure !
  • VESA Mount !
  • WLAN/BT !

  • Intel® Celeron® processor N3060
  • 2 x SO-DIMM DDR3L slots
  • 2 x GbE LAN ports (Realtek RTL8111HS)
  • 8GB onboard eMMC memory
  • 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
  • 1 x SDXC card slot
  • Supports Windows 7/ 8.1/ 10 and Android 5.1


Share

CPU Intel® Celeron® processor N3060
2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
Memory 2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Flash Memory 8GB eMMC
LAN 2x GbE LAN ports (Realtek RTL8111HS)
Video Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Audio Realtek ALC255 controller
Supports 2/4/5.1/7.1 channel configurations via HDMI
Expansion 1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size Mini-PCIe slot (for pre-installed WiFi+BT module)
1x TPM Pin header
Pre-installed:
- 1 x WiFi + Bluetooth card
- Intel Dual Band Wireless-AC 3160 - Supports IEEE 802.11b/g/n/ac
- Supports Bluetooth 4.0
- Bluetooth function does not support under Windows 7 embedded OS
Rear I/O 1x DC-in
2x HDMI v1.4b
2x RJ45
OS Compability Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
Power supply AC 100~240V
19V DC-in
65W/3.42A
Storage 1x SDXC card slot
Front I/O 4x USB 3.0
1x SDXC card slot
1x Headphone-out / MIC-in
1x Power button with LED
1x HDD activity LED
3x LEDs reserved for user configuration
Motherboard MZBSWFP
Dimensions 140.8 x 107.5 x 27 mm
Weight 560g
Side I/O 1x Micro-B USB 2.0
1x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND)
1x Kensington Lock
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from Kreatron am 17.02.2020 | | See all my comments

Klein, leise und für einen MiniPC recht performant

power consumption
tested with SSD, Windows 10 Enterprise 64bit
Standby: 1,1W
Systemboot: 12,5W
Idle: 7,4W
full load: 15,8W
