Main |
|
Range of product |

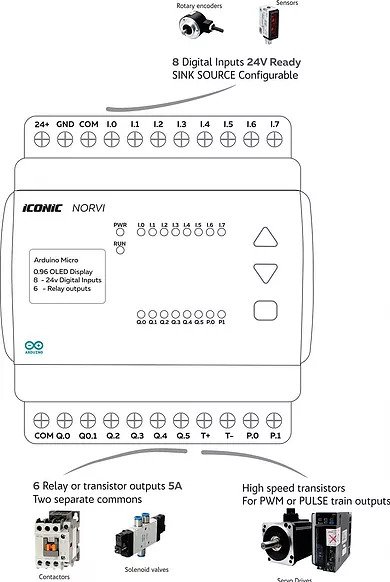

NORVI CEMA |
Product type |
Programmable Controller |
Rated supply voltage |
24V DC |
Discrete input number |
8 discrete input |
Discrete output type |
Relay and Transistor |
Discrete output number |
6 Relay outputs,
2 Transitor outputs |
Discrete output voltage |
24V DC for transisitor output |
Discrete output current |
0.5A with T0.0... T0.1 Transistor 2 A with R0....R5 |
|
|
Complementary |
|
Discrete IO number |
16 |
Number of Expansions |
----- |
Supply voltage limits |
20.4 ..... 28.8V |
Inrush current |
<= 50A |
Power consumption in W |
32.6 ...... 40.4 with all outputs ON |
Discrete logic Input |
Sink or source |
Discrete input Voltage |
24V DC |
Voltage TypeVoltage state 1 |
> = 15V for Input |
Voltage TypeVoltage state 0 |
< = 5V for input |
Discrete Input Current |
5mA for Input |
Input impedance |
4.7k Ohm for Input |
Local signalling |
1 LED green for PWR 1 LED green for RUN
8 LED green for I0......I7
6 LED green for R0.....R5 2 LED green for T0....T1 |
Electrical connection |
Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
Mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Plate or panel with fixing kit |
Height |
90.50 mm |
Depth |
56.60 mm |
Width |
60.60 mm |
Weight |
0.43 kg |
Environment |
|
Resistance to electrostatic discharge |
4kV on contact, 8kV on air |
Resistance to electro magnetic fields |
10 V/m (80 MHz ...... 1 Ghz)
3 V/m (1.4 MHz ...... 2 GHz)
1 V/m (2 MHz ....... 3 GHz)
|
Immunity to microbreaks |
10 ms |
Relave humidity |
10....95% without condensation in operation |
IP degree of protection |
IP20 |
Operating altitude |
0...2000m |
Storage altitude |
0...3000m |
Shock resistance |
15 gn for 11 ms |
Resistance to electrostatic discharge |
4kV on contact, 8kV on air |
Resistance to electro magnetic fields |
10 V/m (80 MHz ...... 1 Ghz)
3 V/m (1.4 MHz ...... 2 GHz)
1 V/m (2 MHz ....... 3 GHz)
|
