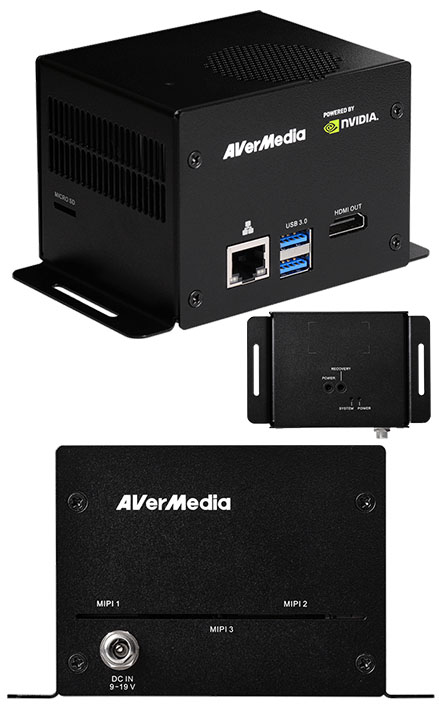

AVerMedia NX211B-16G BoxPC (NVIDIA Jetson Xavier 16GB)

AVerMedia NX211B-16G BoxPC  (NVIDIA Jetson Xavier 16GB)
3D 360° View
  • NVIDIA !
  • Jetson Xavier !

AVerMedia AVerAI Box PC NX211B equips NVIDIA® Jetson Xavier™ NX module and is designed for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 60°C. It features the very compact dimensions of 91.4mm x 76.6mm x 70mm.

AVerAI NX211B can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input (internal), 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins expansion header (internal), 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery.

With the compact dimensions, design for reliable field inst
[more]

Share

1439.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart

AVerMedia AVerAI Box PC NX211B equips NVIDIA® Jetson Xavier™ NX module and is designed for the industry applications in the environment with the high physical space concern and operation in the temperature range from 0°C to 60°C. It features the very compact dimensions of 91.4mm x 76.6mm x 70mm.

AVerAI NX211B can provide the access to a list of rich I/O functions, which includes 2x 2 Lane MIPI CSI-2, 1x 4 Lane MIPI CSI-2 MIPI Camera Input (internal), 1x 4Kp60 HDMI output, 2x USB 3.0, 1x GbE RJ-45, 20-pins expansion header (internal), 1x Micro SD card slot, and 1x Micro-B USB 2.0 for recovery.

With the compact dimensions, design for reliable field installation, and the rich I/O functions, NX211B is the best cost-effective choice for AIoT edge computing in the intelligent video analytics applications of Smart Retail, Smart Camera, Smart Medical and Smart City.

  • Embedded NVIDIA® Jetson Xavier™ NX module
  • 1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
  • 1x micro-SD card slot
  • Operating temperature: 0°C ~ 60°C
  • Dimension: 91.4mm x 76.6mm x 70mm




Model NX211B
Type Box PC
NVIDIA GPU SoC Module Compatibility NVIDIA® Jetson Xavier™ NX module
Networking 1x GbE RJ-45
Display Output 3840 x 2160 at 60Hz
Temperature Operating temperature 0°C~55°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal) •     2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible on NVIDIA® Jetson Nano™ Developer Kit) •      Optional: 1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector
USB 1x USB 2.0 Micro-B for recovery 2x USB 3.0 Type-A
Storage 1x micro-SD card slot
GPIO Expansion (Internal) 20 pins: 2x I2C, 1x UART, 9x GPIOs
Input Power 12V/5A 9V~19V is recommended.
Power Cord US/JP/EU/UK/TW
Fan Module Heat sink with fan
Buttons Power and Recovery
RTC Battery Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info W: 91.4mm x L: 76.6mm x H: 70mm (3.60” x 3.02” x 2.76”) Weight: 480g
Certifications CE, FCC
Data sheet Download (PDF)
