Intel D201GLY (with integrated Celeron 1.33Ghz CPU)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel D201GLY (with integrated Celeron 1.33Ghz CPU)
  • Intel Rapid BIOS Boot
  • DDR-II RAM
  • 1.33Ghz CPU
  • 3 years warranty

The Intel® Desktop Board D201GLY is an innovative solution for the sub-value market segment. With an Intel® Celeron® processor and graphics integrated on the board, this board enables easy system integration and helps you to achieve a lower system cost. This board has 10/100 LAN and can support up to six Hi-Speed USB 2.0 ports, providing both connectivity and ease of use for your computing needs such as email and Internet access, instant messaging and Voice Over IP (VoIP).

The Intel Desktop Board D201GLY is built in smaller uATX-Compatible form factor providing lower power consumption and low sound emission.



Note : The CPU heatsink has a h
[more]

Share

The Intel® Desktop Board D201GLY is an innovative solution for the sub-value market segment. With an Intel® Celeron® processor and graphics integrated on the board, this board enables easy system integration and helps you to achieve a lower system cost. This board has 10/100 LAN and can support up to six Hi-Speed USB 2.0 ports, providing both connectivity and ease of use for your computing needs such as email and Internet access, instant messaging and Voice Over IP (VoIP).

The Intel Desktop Board D201GLY is built in smaller uATX-Compatible form factor providing lower power consumption and low sound emission.

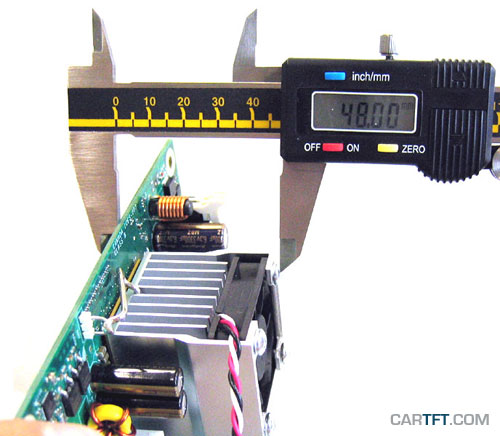

Note : The CPU heatsink has a height of 40mm. Thats why it does not fit into every enclosure.
Compatible with :
- Voom
- Voom-2
- M300(-LCD)
- Travla C137
Not compatible with :
- M200(-LCD)
- Morex enclosures


PicoPSU & M3-ATX : You can only directly stick in the standard picoPSU-120 power supply. Other picoPSU models and M3-ATX can only be connected with an additional ATX extension cable.


For Operating you need a P4 adapter or a PSU with P4 connector

Form Factor uATX (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters]) (ITX compatible)
Processor Integrated Intel® Celeron® 215 processor (1.33 Ghz) with a 533 MHz system bus
Memory One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 533 MHz and DDR2 400 MHz DIMMs
Support for up to 1 GB of system memory
Chipset SiS* SiS662
Audio ADI* AD1888 audio codec
Video Integrated SiS Mirage* 1 graphic engine
I/O Control Winbond* W83627DHG-B based Legacy I/O controller for hardware management, serial, parallel, and PS/2* ports
LAN Support 10/100 Mbits/sec LAN subsystem using the Broadcom* LAN adapter device
Peripheral Interfaces Six USB 2.0 ports
One parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
One S-Video output port (optional)
One serial port
One parallel port
PS/2* keyboard and mouse ports
Expansion Capabilities One PCI Conventional* bus connector
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
Heatsink-Height Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 11 ratings
5 von 5 Sternen from webbi1991 am 14.10.2009 | See all my comments

super produkt, das man nur weiterempfehlen kann. Ich habe das Board inzwischen über 1 Jahr in Betrieb und es funktioniert noch immer tadellos. ich verwende das board zur Zeit in einem selbstgebauten stromsparenden server, der eigentlich Tag und Nacht angeschaltet ist. Diese Dauerbenutzung hat es bisher problemlos überstanden.

5 von 5 Sternen from DasNets am 26.02.2008 | See all my comments

Super Mainboard, da man damit auch Standart-Hardware verwenden kann, nicht nur Peripheriegeräte im Notebookformat. Und das alles auf Mini-ITX-Größe. Auch die Kühlung ist Einwandfrei. Mainboard ist stets bei Betriebstemperatur und läuft nicht zu heiß.

4 von 5 Sternen from myrus am 30.01.2008 | See all my comments

Very good board and excelent priçe

5 von 5 Sternen from ajfh am 25.01.2008 | See all my comments

very good board, low cost

3 von 5 Sternen from FabianFersterra am 04.01.2008

Für den Preis wirklich unschlagbar!
Läuft bei mir im Auto mit 512MB Ram und ist (bis auf das BIOS, aber das ist ja konfigurationsabhängig ;) ) superfix. Keine Chipsatztreiberinstallation, wurde von Windows XP (in meinem Fall SP2) alles erkannt bis auf die Soundkarte, dadurch sehr geringer Installationsaufwand.
Gerade für CarPCs oder den Einsatz als HTPC im Wohnzimmer ideal!
